The RG-40XXH is a 4.0 inch 4:3 Linux handheld that plays everything up to Dreamcast well, made by Anbernic. It came out in July 2024 at $70. Inside is the Allwinner H700 with 1 GB of RAM.
Who it's for
Buy it if
- You want to play everything up to Dreamcast, plus some PSP.
- You want a 4.0 inch screen and carry it in a bag or a jacket.
Skip it if
- You want PSP games: it scores 50 out of 100, so many games struggle.
- You want a handheld for a jeans pocket.

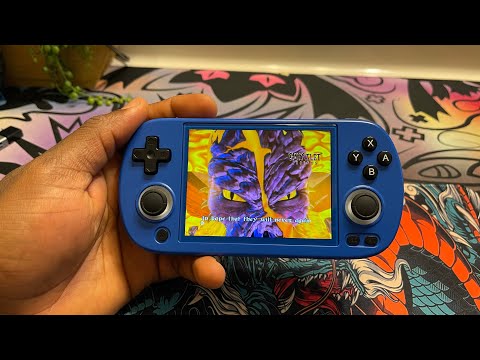

RG-40XXH videos
What it plays
Plays up to: Dreamcast. Chip: Allwinner H700.
Scores out of 100. 100 means the system runs at full speed with no known issues on this device. 80 or more plays well (green), 50 to 79 plays partly (yellow).
What owners say
“My RG40XXH came low quality SD cards and some of the games crashed the system.”
“I have the RG40XXH which I really enjoy because it feels a bit better to hold compared to something vertical.”
“I really liked my RG 40xxh. The screen was great, and having 2 sticks was excellent”
What the specs mean
4:3 screen
NES to PS2 era home consoles were 4:3, so they fill it. GBA and PSP games show bars above and below.
Based on: Display math: native screen shapes of each system
PS1 and N64 at exactly 2x
320 x 240 times 2 is the screen's own 640 x 480, so PS1 and N64 pixels stay perfectly even with no filter and no bars.
Based on: Display math: native resolution x whole-number scale = screen resolution
Same chip as 11 other handhelds
The Allwinner H700 also powers the Anbernic RG SP, RG Cube XX, RG-28XX, RG-34XX and more. The same chip means similar speed, though memory and cooling can differ.
Based on: Our handheld database (chip field)
D-pad on top, sticks below
The d-pad has the natural thumb spot, which suits 2D games. In 3D games your thumb lives on the lower stick.
Based on: Layout data (d-pad placement)
DS without touch
There is no touch screen, so DS games that need the stylus use a pointer moved by a stick.
Based on: Layout data: no touch screen
Rating
How we score: what it plays 30%, how many players own and recommend it 20%, screen 15%, price compared with handhelds that play as much 10%, controls 10%, size and weight 10%, battery size for its chip 5%.
Good
- Plays everything up to Dreamcast well
- Video out to a TV
- Low price
Not so good
- Not built for PS2 games
Screen fit
Screen: 4.0 inch, IPS, 4:3, 640 x 480.
| System | Original | Sharpest scale | Screen filled |
|---|---|---|---|
| Game Boy | 160 x 144 | 3x (480 x 432) | 68% |
| GBA | 240 x 160 | 2x (480 x 320) | 50% |
| NES and SNES | 256 x 224 | 2x (512 x 448) | 75% |
| Genesis | 320 x 224 | 2x (640 x 448) | 93% |
| PS1 and N64 | 320 x 240 | 2x (640 x 480) | 100% |
| DS, one screen | 256 x 192 | 2x (512 x 384) | 64% |
| PSP | 480 x 272 | 1x (480 x 272) | 43% |
Whole-number scales keep every pixel the same size. Bold rows fill the screen with a perfect fit. Screen 640 x 480.
Size
163 x 79 x 16 mm, 208 g. Too big for a jeans pocket
- RG-40XXH (163 x 79 mm)
- iPhone 15 (71.6 x 147.6 mm)
True scale, front view. Jeans pocket = front no bigger than an iPhone 15 Pro Max in a case (160 x 82 mm).
Specs
| Performance | |
|---|---|
| Chip | Allwinner H700 |
| CPU | Cortex-A53 |
| Cores | 4 |
| Clock speed | 1.5 GHz |
| GPU | Mali-G31 MP2 |
| RAM | 1 GB LPDDR4 |
| Cooling | No |
| Screen | |
| Size | 4.0" |
| Type | IPS |
| Resolution | 640 x 480 |
| Refresh rate | 60 Hz |
| Pixel density | 200 ppi |
| Aspect ratio | 4:3 |
| Dual screen | No |
| Controls | |
| D-pad | Cross, Upper placement |
| Analog sticks | Yes |
| Stick layout | Double, symetrical |
| L3 / R3 | Yes |
| Shoulder buttons | Stacked |
| Rumble | Yes |
| Gyroscope | No |
| Connectivity | |
| Storage | Dual External MicroSD |
| SD card | Yes |
| Wi-Fi | Yes (5) |
| Bluetooth | Yes (4.2) |
| USB-C | Yes |
| Video out | Yes |
| Headphone jack | Yes |
| Build | |
| Form factor | Horizontal |
| Dimensions | 163 x 79 x 16 mm |
| Weight | 208 g |
| Battery | 3200 mAh |
| Shell | Plastic |
| Speakers | Bottom |
| Software | |
| Operating system | Linux |
| Custom firmware | SpruceOS, ROCKNIX, MinUI, muOS, KNULLI |
| PortMaster | Yes |
Questions
Can the RG-40XXH play PS2 games?
Not well. PS2 scores 0 out of 100. It plays everything up to Dreamcast well.
Can it play GameCube games?
Partly. GameCube scores 10 out of 100.
Is the RG-40XXH good for GBA?
GBA runs at full speed. At 2x it fills 50% of the screen with even pixels.
Does it have a headphone jack?
Yes.
How big is the battery?
3,200 mAh. The middle Linux and other handheld in our database has 3,000 mAh.
Can it connect to a TV?
Yes, it has video out.
How much does the RG-40XXH cost?
It launched at about $70 in Jul 2024. Prices on the used market change, so check current listings.
Price and newer models
$70 at launch $60 to $120
The newest in its line in our database, out since Jul 2024.
